conveyor ovens conveyor ovens

Conveyor Oven Model TDS-400

Model: TDS-400
Color: Off white
Humidity Range:RT+20°C ~ 150°C (Continuous baking between 60°C and 150°C for 2000 to 3000 hours)
Interior Dimension: W1000*H500*D3000mm
Exterior Dimension: W1360*H1760*D4000mm
Power Supply: AC380V 3φ 50HZ/60HZ
Atmosphere: Forced Air Convection
Application: Materials Baking/Curing

WANT A QUOTE

DESCRIPTION

Industrial Conveyor Belt Ovens is used for materials drying,adhesive curing,high temperature aging,coating, annealing under high temperature condition,widely used in aviation, aerospace, petroleum, chemical, military, ship, electronics, communications,pharmaceutical other scientific research and production units.

The oven can reach superior temperature uniformity in all interior parts due to high-volume, vertical down airflow. The continuous belt design is ideal for large quantities of similar work pieces being processed.

FEATURES

  • The main body adopts 40*40 channel steel, column adopts 40*40 square steel,plastic cushion M12/90L adjusting foot
  • Air duct material: Perforated with 1.2 mm thickness SUS304 stainless steel plate with sheet metal bending.
  • Body Material: Reinforced material :4# and 5# angle steel and 1.0-1.2 mm thickness groove type cold-pressed steel plate, to make the body strong and durable.
  • Insulation material :100 mm thick high grade glass wool,ensure good thermal insulation.
  • Exterior material :1.2 mm thickness SUS304 stainless steel
  • Working area:1.2 mm thickness SUS304 stainless steel with sheet metal bending

VIDEO

SPECIFICATION

Model: TDS-400
Color: Off white
Temperature Range:RT+20°C ~ 150°C (Continuous baking between 60°C and 150°C for 2000 to 3000 hours)
Temperature Resolution: 0.1°C
Temperature Fluctuation: ± 1.0°C
Temperature Fluctuation: ≤ +/-2.5%
Interior Dimension: W1000*H500*D3000mm
Exterior Dimension: W1360*H1760*D4000mm
Power Supply: AC380V 3φ 50HZ/60HZ
Atmosphere: Forced Air Convection
Application: Materials Baking/Curing
Ambient: +5°C~ 40°C

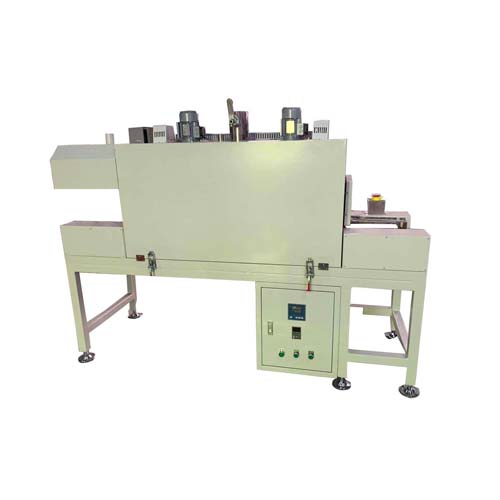

Conveyor oven with lower cabinet:
